Industrial dies play a critical role in manufacturing and proper storage is essential to ensure their longevity and performance. Nevertheless, dies are challenging to store due to their heavy weight, bulky size and inability to be stacked. This is where die storage racks come into play, providing a safe and organized storage solution for these vital manufacturing tools.

Die storage racks are essential in any manufacturing facility that requires multiple dies or molds to produce their products. These racks provide an efficient way to store, retrieve and manage dies, ultimately increasing productivity, reducing costs and improving safety.

Read on to learn about the benefits of die racks and the following types of tools and die storage racks:

To see more industrial storage solutions, view our market page.

industrial icon white

See More Material Handling Storage Solutions

Die Rack Benefits

Increased productivity

mold die storage racksWith an organized die storage system, workers can quickly locate and retrieve dies, which minimizes the time and effort required to find and transport them to the production line.

Space savings

Die storage racks help to optimize floor space by utilizing vertical space, which provides more storage capacity without taking up valuable floor space.

Better organization

With the ability to design a custom rack for your die storage needs, you can achieve optimal organization and easily find dies when needed.

Improved safety

Storing heavy dies and molds on the floor can create safety hazards for workers. Die racks store dies securely and stably, reducing the risk of worker injury and damage to the dies.

Cost savings

By optimizing floor space and increasing productivity with die storage racks, companies can save on operational costs associated with production.

Types of Die Storage Racking Systems

Heavy-Duty Die Racks

heavy duty die racksHeavy-duty die racks provide fully customizable die storage, with the strength and flexibility to store dies of all sizes. The structural rack design offers optimal selectivity and convenient access to dies on the production floor. Dies slide easily on or off the high-strength shelves and have fork entry bars for forklift access.

The heavy-duty die storage racks feature a solid sheet metal shelf design that waterfalls over tubular beams supported by 2″ x 2″ horizontal cross bars. The unit is fully welded for shipping. A knock-down bar grating shelf is available as an alternative. Columns feature holes punched at 3″ increments for adjustable shelving, with custom position drilling also available. Visit our online store to see our industrial storage products.

Standard specifications for heavy-duty die racks:

  • Column construction: 7- or 11-gauge structural tube
  • Column sizes: 3” x 3” or 4” x 4”
  • Column heights: 96″, 120″, or 144″
  • Shelf widths: 72″, 96″, or 120″
  • Shelf construction: 7 or 11 gauge
  • Shelf load capacity: 250 or 500 pounds per square foot

Gravity Flow Die Racks

press brake die storage racksAvailable in heavy-duty or light-duty configurations, gravity flow die racks are good for storing parts requiring quick access. Stored products flow from the back of the rack to the front on steel or PVC rollers. Optional features include multiple lanes, multi-directional configurations and locking devices.

Press Brake Die Storage Racks

Designed for storing press brake tools and dies, press brake die storage racks improve tool organization and can increase your storage capacity by up to 40%. The press brake die rack features fully extendable shelves with a capacity of up to 4,000 pounds per shelf and adjustable and removable tool holders. An optional shelf lock feature prevents more than one shelf opening at a time. Other options include a monorail beam for lifting heavy tools, a locking enclosure for loss prevention and a feature that locks an open shelf in position to prevent movement during access.

Press brake die rack standard dimensions:

  • 76″ H
  • 24 to 96″ W
  • Custom dimensions available

Die Rack Roll-Out Shelves

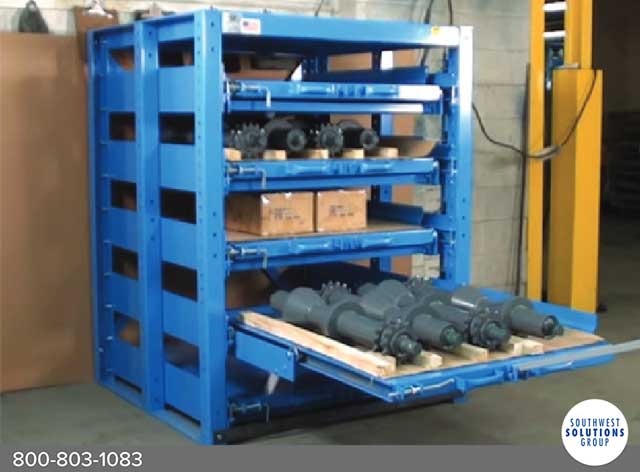

die rack roll out shelvesSeveral die rack systems feature roll-out shelves. The shelves glide out with 100% extension to enable overhead access by cranes or hoists. These die storage racks boast a capacity of up to 4,000 pounds per shelf, with manual, hand-crank and powered roll-out shelves available. Powered units feature a push-button operator station and low-voltage motor.

Optional features:

  • Shelf auto-lock feature to prevent more than one shelf from opening at a time
  • Shelf lock-out feature to lock the open shelf in position during access
  • Backs or sides to enclose the unit
  • Doors with or without locks
  • Shelf lips to prevent tubular or rolling stock from rolling off the shelf
  • Rear load or bi-directional configurations

Mold Die Storage Racks

Mold die storage racks feature a single injection mold storage shelf. The heavy-duty die rack shelving has a 15,000-pound capacity and motorized roll-out shelves with a 75% extension.

Tool and Die Carts

Several specialized tool and die carts are available for safely and conveniently transporting dies and tools. One efficient option is the four-wheel steering cart, which features a 25% turn radius reduction compared to traditional carts. It attaches easily to automated guided vehicles and is customizable to your application.

shopping cart iconPrices for Industrial Products

See specifications and pricing for open & closed shelving, sliding bin shelving, shelving with drawers, and bulk rack.

Contact Us for Die Storage Racks

Southwest Solutions Group® provides design and installation services for tool and die rack systems. We will also provide a free consultation to determine your needs and specifications before the design begins. To learn more or to speak with a specialist, call us at 1-800-803-1083 or send us a message today.
