In hospitals, beds stored in hallways can pose a significant safety hazard. However, storing beds, gurneys, and stretchers when they’re not in use or when they’re awaiting maintenance is difficult at best. Vertical stacking automatic lifts for hospital bariatric bed storage aims to eliminate these issues and increase your available floor space. Available on Vizient GPO Contract #CE2900 (Vizient customers call for contract pricing.

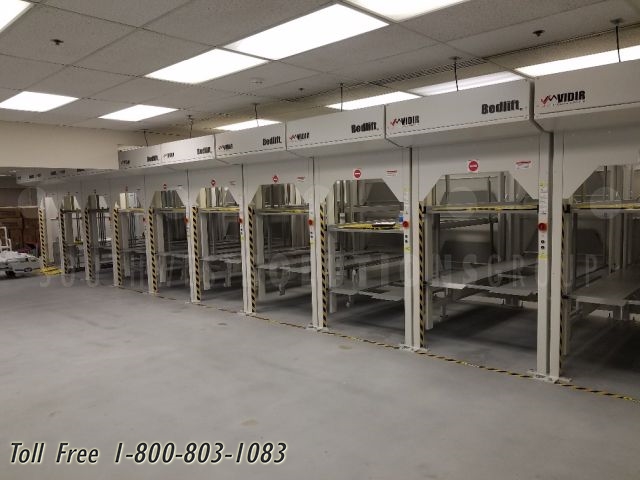

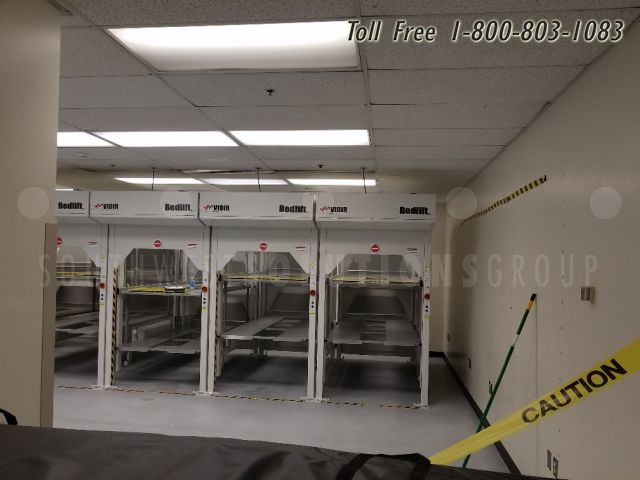

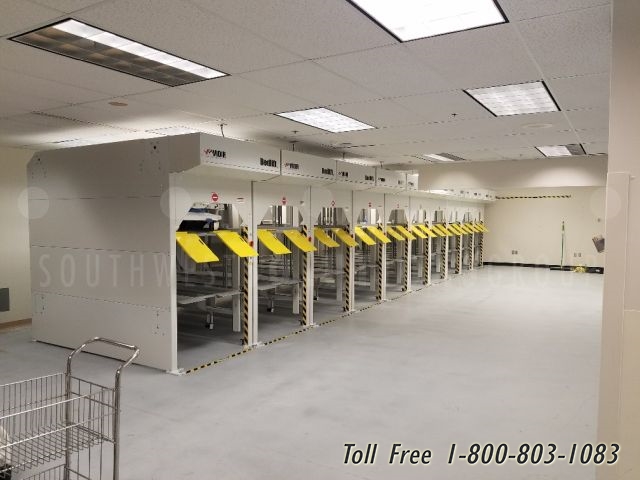

The user simply rolls the bed being stored in the lift and presses a button, which automatically raises the platform. Additional platforms underneath are then accessible for the next load. To retrieve beds, the user just rolls it out of the lift. This vertical stacking design not only saves space but also keeps beds safe and out of the way during storage or maintenance. Click here to watch videos showing how the vertical stacking automatic lifts work.

For more information or to speak with a healthcare storage specialist, call us at 800-803-1083 or send us a message today.

BedLift Size Chart (Revit)

Model & Description
Positions
Load Position
Dimensions
Weight
Bed Dimensions
Capacity
Link
SSG-ST427-45R Standard Hospital BedLift
4
Front
4′ 6″ W x 10′ D x 10′ 3″ H
1649
44.5″ W x 95″ D x 26″ H
600 lbs
  2015 revit thumb
SSG-ST527-45R Standard Hospital BedLift
5
Front
4′ 6″ W x 10′ D x 12′ 6″ H
2049
44.5″ W x 95″ D x 26″ H
600 lbs
  2015 revit thumb
SSG-ST233-45X Heavy Duty Hospital BedLift
2
Front
4′ 6″ W x 9′ 2″ D x 7′ 3″ H
1219
44.5″ W x 95″ D x 32″ H
900 lbs
  2015 revit thumb
SSG-ST333-45X Heavy Duty Hospital BedLift
3
Front
4′ 6″ W x 9′ 2″ D x 9′ 6″ H
1550
44.5″ W x 95″ D x 32″ H
900 lbs
  2015 revit thumb
SSG-ST433-45X Heavy Duty Hospital BedLift
4
Front
4′ 6″ W x 9′ 2″ D x 12′ 3″ H
1935
44.5″ W x 95″ D x 32″ H
900 lbs
  2015 revit thumb
SSG-ST327-96S Side Load Hospital BedLift
3
Lateral
8′ 9″ W x 4′ 7″ D x 8′ H
1416
44.5″ W x 95″ D x 26″ H
600 lbs
  2015 revit thumb
SSG-ST427-96S Side Load Hospital BedLift
4
Lateral
8′ 9″ W x 4′ 7″ D x 10′ 3″ H
1743
44.5″ W x 95″ D x 26″ H
600 lbs
  2015 revit thumb
SSG-ST327-32N Hospital Stretcher Lift
3
Front
3′ 5″ W x 10′ D x 8′ H
1345
31.5″ W x 95″ D x 26″ H
600 lbs
  2015 revit thumb
SSG-ST427-32N Hospital Stretcher Lift
4
Front
3′ 5″ W x 10′ D 10′ 3″ H
1649
31.5″ W x 95″ D x 26″ H
600 lbs
  2015 revit thumb
SSG-ST527-32N Hospital Stretcher Lift
5
Front
3′ 5″ W x 10′ D x 12′ 6″ H
2049
31.5″ W x 95″ D x 26″ H
600 lbs
  2015 revit thumb
