Under Pallet Rack Pull-Out Storage

Turn unused space beneath pallet racks into productive, pull-out storage that slides forward for access and back to keep aisles clear. Under Pallet Rack Pull-out Storage consolidates small parts, cartons, tools, and packing supplies right at the point of use to cut walk time and boost throughput. Our team provides planning, budgeting, installation, and BIM support, including Revit content. You can download Revit files anytime, or request a consultation to review your rack footprint and identify the best bays for under-rack pull-outs.

Get Custom Design

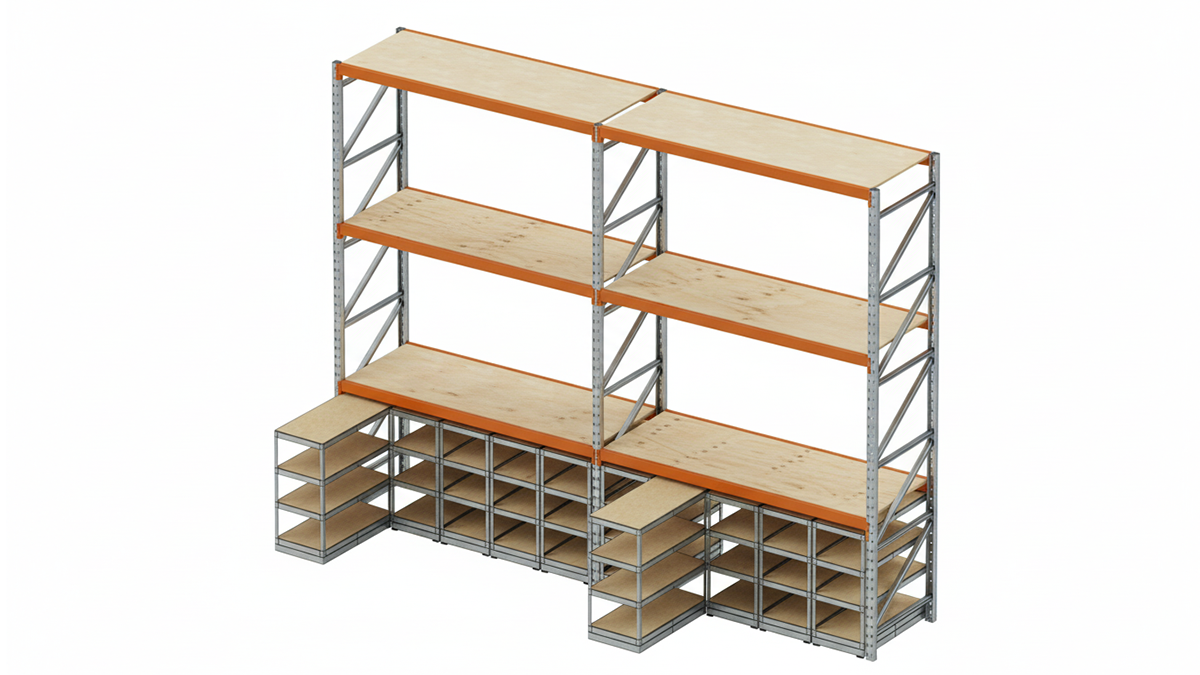

the under-rack-pullout-high-density-shelving-system-warehouse shows a high density shelving setup designed for organized storage and improved picking efficiency

What Is Under Pallet Racks Storage

Under pallet rack pull-out storage installs beneath existing heavy-duty racking. A floor-mounted, discreet track guides the carriage while a durable front wheel glides along the floor. Operators pull the shelving forward to pick or replenish, then slide it back under the rack to keep aisles open.

Key advantages:

Activates unused space below pallet rack beams
Pull-forward access improves visibility and reach
Slides back under racks to keep aisles clear
Places small goods near pallet loads to reduce walk time
Supports high density pallet storage strategies

How It Integrates With Existing Pallet Racks

The system mounts below standard rack bays to create an under-rack mobile shelving zone at floor level. It uses the main aisle as a temporary access point when pulled forward, then returns beneath the bay to maintain clear travel paths.

Features include:

Floor-mounted track remains hidden and out of aisles
Urethane front wheel for smooth pull-out movement
Guided track helps keep the carriage aligned
Ergonomic access for kitting, packing, or line-side materials
Scales across multiple bays as needs grow

the under-rack-shelving-system-for-warehouse-storage offers added lower level storage capacity for small parts and boxed goods

the high-density-under-rack-shelving-system-front-view shows expanded storage capacity designed for high volume warehouse operations

Decking & Panel Options

Configure shelves and fronts to match your application and code requirements. Decking choices and panel options help tailor visibility, airflow, and protection for parts and supplies.

Available options:

Shelf decking: particle board, solid metal, perforated metal, wire grid
Front/end panels: solid metal, slat wall, wire grid, clear acrylic, peg board, laminated
Adjustable shelf spacing for varied carton and tote sizes
Modular components to fit common rack bay widths
Simple, low-profile hardware for clean integration

the warehouse-high-density-under-rack-shelving-front-load provides efficient lower level storage for boxed goods and small inventory — Consolidate small goods under pallets to speed picks.

Small parts and slow movers often scatter across low shelves and crowd aisles. Unused space under pallet racks increases walk time during picking and replenishment.

Under rack mobile shelving creates a dedicated pull-out zone beneath pallet bays so teams can stage parts, packaging, and supplies right where pallet loads are stored. Operators access items quickly, then close the unit to keep pathways clear.

Staging near pallet SKUs
Reduced walk time
Clear aisles between picks
Scales across bays

the single-bay-under-rack-high-density-shelving provides multiple shelf levels for organized storage of warehouse inventory and improved picking efficiency — Keep kitting parts and tools within arm’s reach.

Line-side operations need fast access to kits, tools, and consumables. Storing them far from palletized components adds walking, slows changeovers, and clutters work areas.

Placing pull-out storage under nearby pallet bays keeps essentials at the point of use. Teams pull out the shelving to pick, then slide it closed to maintain clean, open aisles and steady material flow.

Ergonomic access at floor level
Kitting and tool staging
Fewer trips per order
Supports lean layouts

the under-rack-shelving-system-warehouse-storage-layout enhances inventory organization with accessible lower level shelving compartments — Stage packing supplies right where pallets ship.

Packing teams juggle cartons, dunnage, labels, and supplies that spread across floor space and reduce staging capacity around pallets.

Pull-out shelving under racks consolidates these essentials near outbound loads. The design speeds access during rush periods, then closes to keep aisles open for forklifts and pickers.

Faster packing prep
Supplies near pallets
Open aisles when closed
Simple to deploy in zones

the single-bay-industrial-shelving-rack-system provides multiple shelf levels suitable for organizing cartons and warehouse supplies — Reduce steps and door-open time around pallet bays.

In temperature-controlled areas, every step counts. Small packaging items and tools stored far from pallets increase door-open time and slow picks.

Adding pull-out storage under the racks lets teams stage small goods near palletized SKUs. Quick access reduces dwell time in open aisles while keeping inventory zones organized.

Staging near cold-chain pallets
Shorter travel paths
Organized, close-in storage
Cleaner traffic lanes

Frequently Asked Questions

A discreet, floor-mounted track installs beneath existing rack bays. A durable front wheel rides on the floor while the guided track keeps the carriage aligned. Pull forward to access items, then slide back under the rack to clear the aisle.

Yes, it is designed to integrate beneath standard heavy-duty pallet racking. We’ll review beam height, clearances, and the items you plan to store to confirm fit.

Particle board, solid metal, perforated metal, and wire grid decking are available to meet application and code requirements.

Yes. Options include solid metal, slat wall, wire grid, clear acrylic, peg board, and laminated panels so you can tailor visibility and airflow.

Small parts, totes, cartons, tools, packaging supplies, and kitting components that benefit from fast, ground-level access near pallet loads.

No. The track is floor-mounted under the rack and remains hidden from the aisle. When closed, the carriage sits beneath the bay to keep pathways open.

The pull-out carriage is a manual, low-effort design using a front wheel and guided track for smooth movement.

Yes. Shelves can be arranged to accommodate varied tote and carton heights for better organization.

You can deploy a single bay or scale across multiple rack rows. We’ll help plan locations for the biggest workflow gain.

Clearances depend on the carriage depth and how far you pull the unit forward for access. We’ll validate dimensions during layout to keep traffic safe and efficient.

Yes. Decking and panel selections (such as perforated metal or clear acrylic) help address airflow, visibility, and cleanliness to meet application and code requirements.

Contact us for a free review. We’ll assess your rack footprint, identify candidate bays, confirm clearances, and provide a configuration with budget guidance and Revit content as needed.
