Powered Compact Shelving Features

powered compact shelving features safety sweepPowered compact shelving is the ideal system for storage that requires enhanced security, safety, and usability in addition to space-saving storage. With many features such as LED safety sweeps, battery overrides, and much more, the powered shelving is guaranteed to be a long-lasting storage solution with a quick return on investment. Click here to find out more about how compact shelving works.

Safety Sweeps

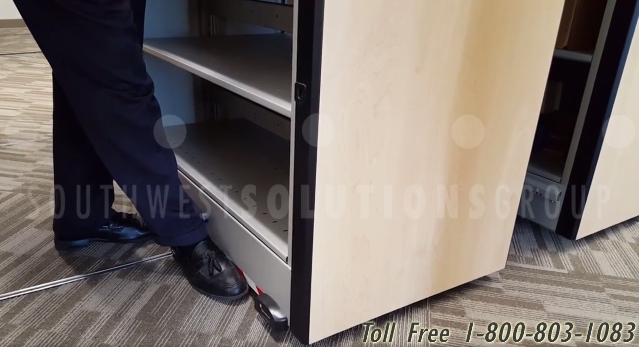

Automatic safety sweeps mean that users and stored items are protected at all times. A full-length infrared safety sweep monitors open aisles at all times. If the sensor is interrupted while the carriage is in motion—for example, if someone is in the aisle or if an item has been left in the aisle—the system will automatically stop. Once the aisle is cleared, the system can be reset to be moved again.

Power Distribution

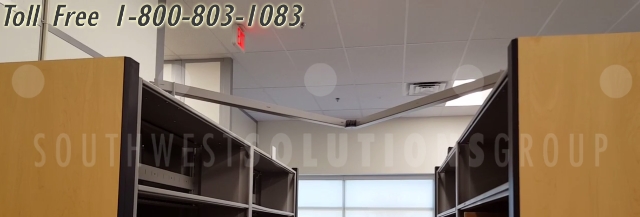

powered shelving pantograph arms battery overrideWith overhead hinged pantograph arms, the power is distributed from one shelving unit to the next as the aisles open and close, ensuring even power distribution.

Battery Override

An override battery pack is included, allowing you to still access your storage even if you’ve experienced a power failure. The pack easily plugs into the bottom of the touchscreen control panel of the shelving.

Additional Features

  • ADA-compliant rails are mounted flush to the floor to eliminate gaps that cause tripping hazards
  • Multiple materials and finishes available for face panels
  • Cantilever, four-post, case-type, or wire shelving can be mounted on the carriages
  • Touchscreen control panels available
  • Automatic aisle lighting available

Contact Us for Powered Compact Shelving

Southwest Solutions Group® provides design and installation services for powered compact shelving with additional features such as LED safety sweeps and battery override packs. We will also provide you with a free consultation to determine your exact needs and specifications before the design process begins. To learn more or to speak with a specialist, call us at 1-800-803-1083 or send us a message today.
